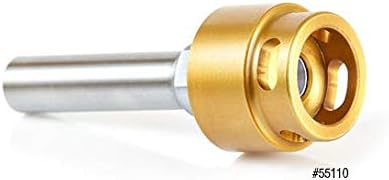

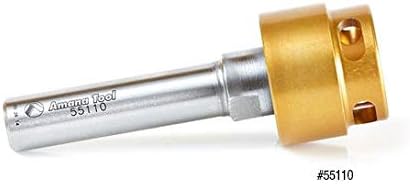

Amana Tool - 55110 3D Adapter 1-1/16 Dia x 1 2" Shank

This 3D adapter is a versatile device used for making compound curves by inserting the adapter over any 1/4" Shank router bit. By making it as an adapter and not a solid tool, The system becomes much more flexible as well as cost effective. Insert adapter over any tool with 1/4" Shank up to the maximum diameter of the adapter. For example, tool No. 55110 will fit all tools with up to a 3/4" Cutting diameter. The cutting length is adjustable and is limitless to shapes and tools This adapter may be used for. This adapter was made with 1/2" Shank and it can be used in routers with a recommended maximum RPM of 18, 000. This 3D system may be useful especially for small objects, artistic works and other delicate projects. Hence, it could be a complementary system for the Amana miniature router bits with a 3/16" Diameter ball bearing. Additionally, this tool can also be used for small jobs with a drill machine (when one doesn't have a router). in this case, the outer ring, which revolves against the tool, serves as a small "router Table". For this application, Amana recommends a minimum of 3, 000 RPM, #55110, diameter (D) 1-1/16, cutting Height (B) 1, shank (D) 1/2, overall length (L) 3-D/32, D1 25/32, 55110 3D adapter 1-1/16 dia x 1 x 1/2 inch Shank

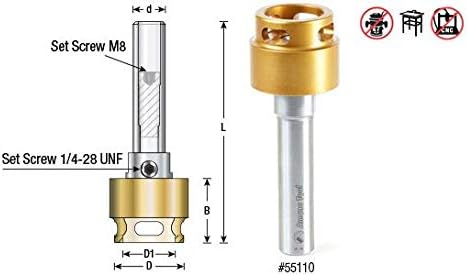

• Diameter (D) 1-1/16
• (B) Cutting height 1
• Shank (D) 1/2
• Overall length (L) 3-13/32
• D1 25/32
