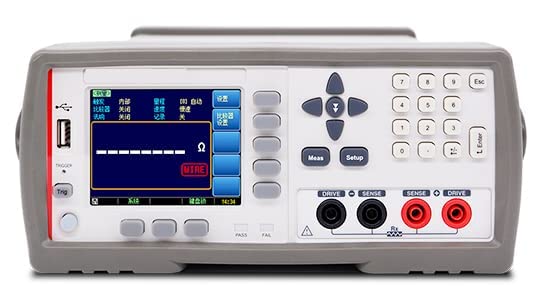

DC Resistance Tester Micro Ohm Meter Low Ohm Tester DC Low Resistance Measurement with Measuring Range 0.001mΩ to 2.2000MΩ Accuracy 0.05% ARM Microprocessor TFT-LCD True Color Display
4.8 (97 items)
Limited Time SaleUS$1,109.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211161163 | Release Date | 2026/04/04 | List Price | US$739.60 | Model Number | 211161163 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

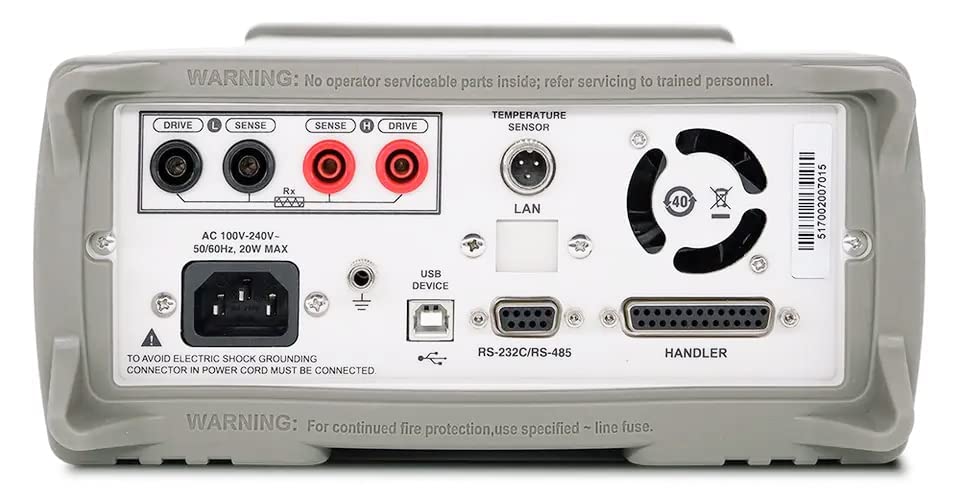

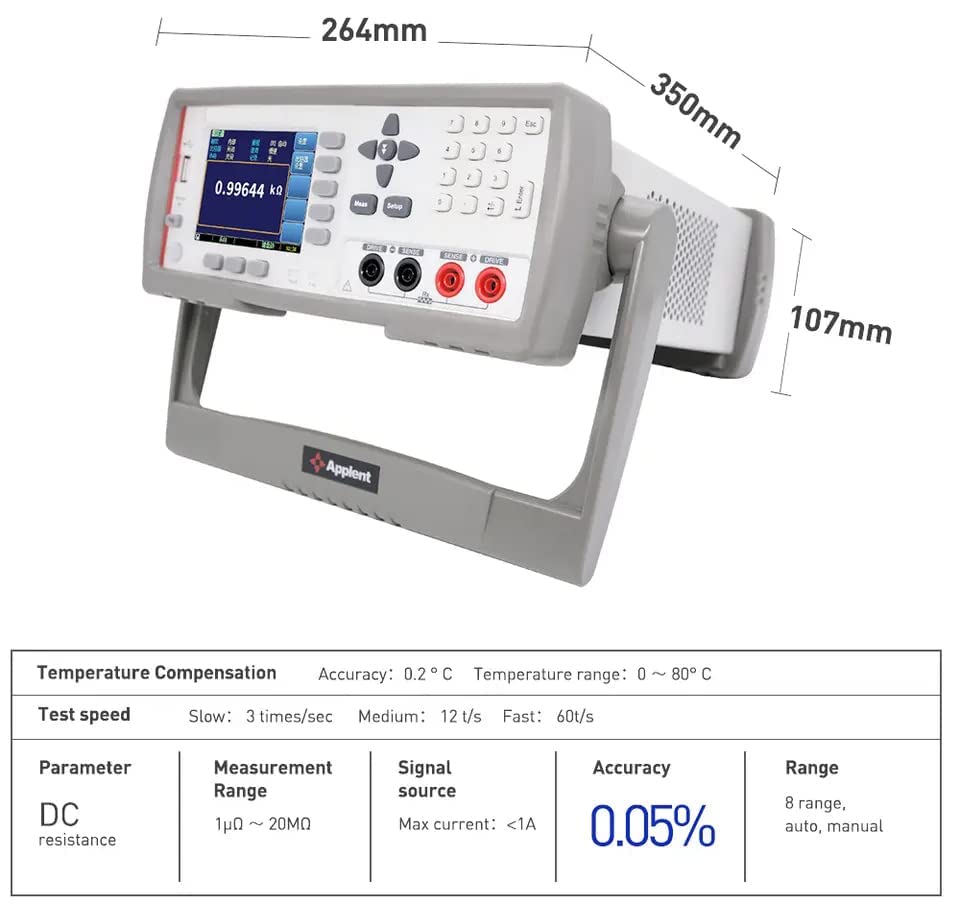

YFYIQI DC Resistance Tester Micro Ohm Meter Low Ohm Tester DC Low Resistance Measurement with Measuring Range 0.001mΩ to 2.2000MΩ Accuracy 0.05% ARM Microprocessor TFT-LCD True Color Display Features: Temperature compensation function. New: bad contact detection function Compatible with SCPI instruction set. Keyboard lock function. Specifications: Parameter:DCR Accuracy:0.05% Measurement Range:0.001mΩ~2.2000MΩ Measurement current：I-max：<1A Range：Automatic, manual, nominal , 8 ranges Speed：3 times/s, 12 times/s, 60 times/s Display：show、ΔABS、Δ% sorting result Display：Max22000 Adjustment：short-circuit reset for all ranges Comparator：Qualified and unqualified Trigger：Internal, external trigger Interface：Handler, RS232C,USB, RS485, Temperature compensation interface Temperature compensation：Accuracy:0.2 °C test range：0～80°C Method：4 terminal shielding (2 check terminal & 2 driving terminal), external shielding ground section Cantact Checking：D+ & S+, D- & S- Power Supply：V:198VAC～240VAC Fre：50Hz Power：15VA Dimension & Weight：264x107x350mm Weight：4kg Other Functions：true color TFT-LCD display, data hold function Application: Measure various high, medium and low value resistors Various switch contact resistance Enameled wire resistance Connector contact resistance Relay wire package and contact resistance Transformer, inductor, motor, deflection coil winding resistance Solder point contact resistance Wire resistance Metal riveting resistance for cars, boats and airplanes Printed plate line and hole resistance Characterize the low resistance characteristics of electromechanical components Metal flaw detection, etc.
- It is a newly designed high-precision, high-stability DC resistance tester;
- Added bad contact detection function.
- It is controlled by a high-performance ARM microprocessor.

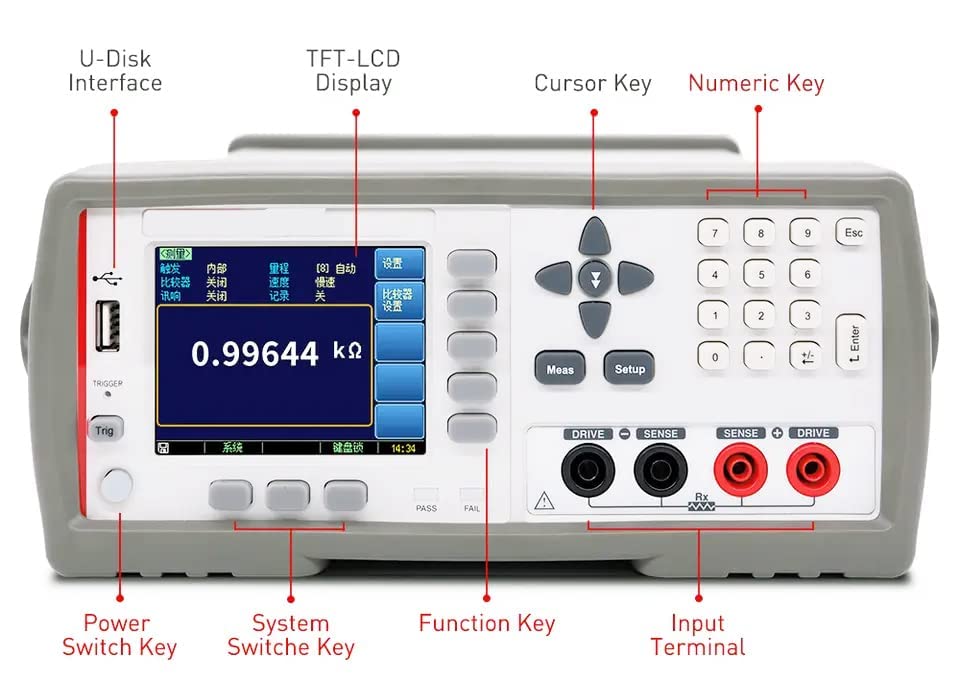

- TFT-LCD true color display, 3.5 inches.
- Display in large fonts in Chinese and English, making operation more convenient.
| Model | 2023050903 |
|---|---|
| Brand Name | YFYIQI |
| Item Weight | 3 Kilograms |
| Manufacturer | YFYIQI |
| Power Source | Corded Electric |
| Item Dimensions | 10.24 x 8.66 x 3.54 inches |
| Included Components | Ohm Meter |
| Warranty Description | 1 year |
