GUSTARD U26 USB Digital Interface - DSD 2048 PCM 1.536M, Dual rectifier bridges, OCXO and K2 clock system, CPLD digital signal shaping (Black)

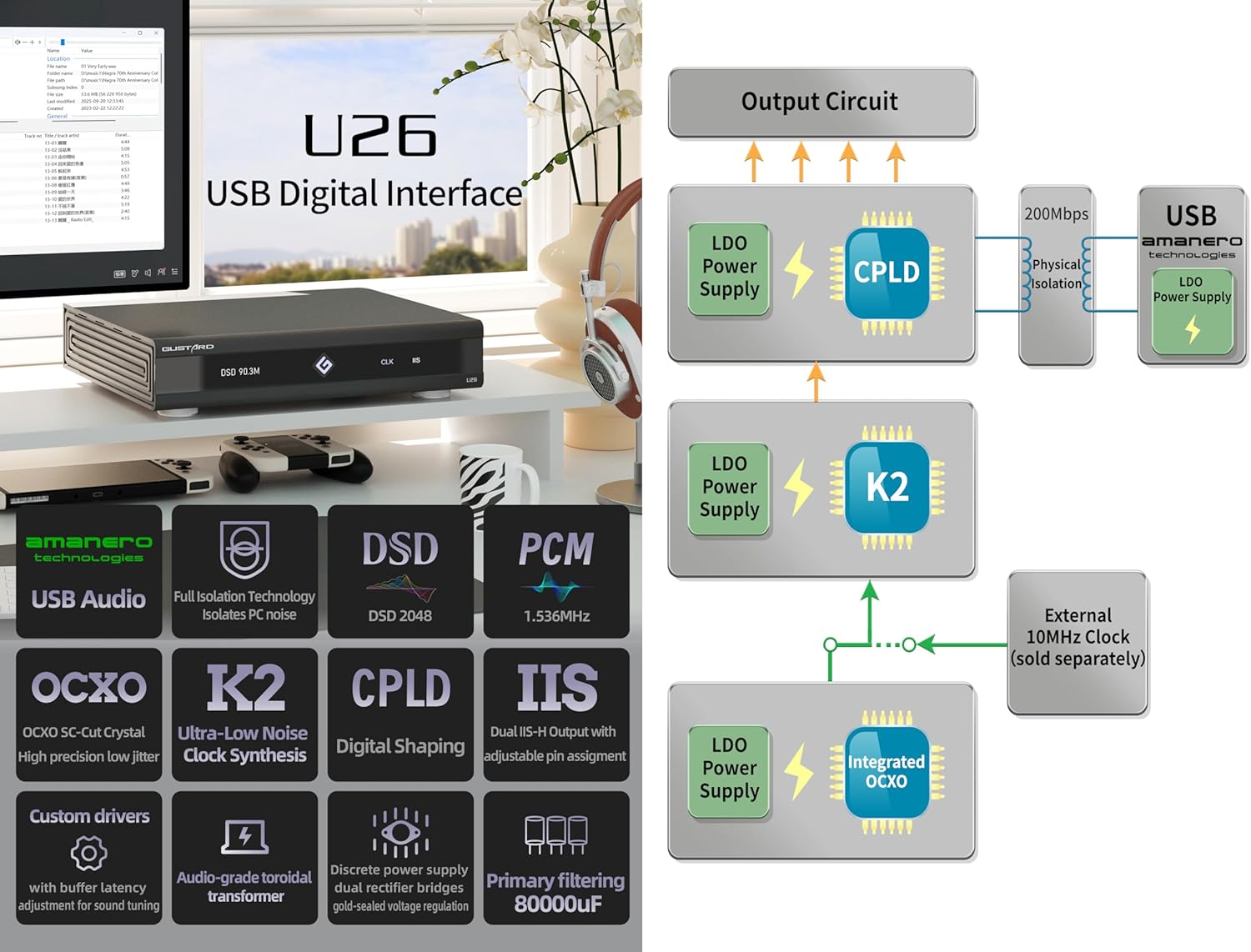

GUSTARD U26 USB Digital interface ▶️ AmaneroTechnologics USB Audio ▶️ Full Isolation Technology Isolates PC noise ▶️ DSD 2048 ▶️ PCM 1.536MHz ▶️ OCXO SC-Cut Crystal High precision low jitter ▶️ Ultra-Low Noise Clock Synthesis ▶️ CPLD Digital Shaping ▶️ Dual IIS-H Output with ▶️ Adjustable pin assignment ▶️ Custom drivers with buffer latency adjustment for sound tuning ▶️ Audio-grade toroidal transformer ▶️ Discrete power supply dual rectifier bridges gold-sealed voltage regulation ▶️ Primary filtering 80000uF Specs Digital Inputs: USB Type-B (USB 2.0 compatible) 10MHz BNC clock input (50Ω, 0–20dBm) Digital Outputs: Coaxial: 75Ω, 500mV P-P @ 75Ω load, PCM 24-bit/44.1–384kHz, DoP64–128 AES (XLR): 110Ω, 2.1V P-P @ 110Ω load, PCM 24-bit/44.1–384kHz, DoP64–128 Optical (TOSLINK): PCM 24-bit/44.1–192kHz, DoP64 IIS (LVDS): PCM 32-bit/44.1–1536kHz, DSD 2.82–90.3MHz (DSD64–DSD2048) Clock System: Dual OCXO + K2 PLL clocks, ±0.1ppm accuracy Isolation: 200Mbps full isolation chip Power Supply: Dual linear supplies with toroidal transformer Power Consumption: <15W Dimensions: 13in × 10.2in × 2.6in (330mm × 260mm × 65mm) Weight: 10.6lbs (4.8kg) Packaging Weight: 13.9lbs (6.3kg) AC Input: 115V / 230V, 50/60Hz Package list Gustard U26 USB Digital Interface Power cord USB cable User manual

• 👍 The Precision Digital Bridge for High-End Audio Systems▶️ The Gustard U26 isn’t a DAC or an amp. It’s the digital bridge that ties your whole audio system together. Designed in collaboration with AmaneroTechnologies, it transforms USB input into ultra-precise digital output for your DAC through IIS, AES, or coaxial connections. With native DSD2048 and PCM 1.536MHz support, a temperature-controlled OCXO clock system, and independent power regulation, it delivers clean, stable, and timing-perfect data for the rest of your chain to shine.
• 👍 Filtering built for audiophiles ▶️ The main filter capacitors deliver a total capacity of 80,000µF. That means robust, stable current delivery no matter how demanding your DAC or amplifier might be. Gustard’s discrete power design pairs metal-cased transistors with TO-3 heat-sink housings, maintaining cool operation even when the night slips away from you.
• 👍 Dual rectifier bridges ▶️ The U26 uses dual rectifier bridges with metal heat sinks rated for 800V DC reverse voltage and 25A current. Forward voltage drop is a mere 1.1V at 12.5A, with a surge current capacity of 400A. In short: efficient conversion, low heat, and dependable long-term performance.
• 👍 OCXO and K2 clock system ▶️ At its core, a temperature-controlled OCXO crystal oscillator and K2 ultra-low-noise PLL clock generate dual clock signals—98.3040MHz and 90.3168MHz—with ±0.1ppm stability. These clocks suppress jitter at the source, keeping your DAC’s conversion process free from timing errors. The result is sharper transient response, improved imaging, and a blacker noise floor.
• 👍 CPLD digital signal shaping ▶️ A custom programmable logic device re-shapes IIS signals after isolation to remove any residual jitter. Think of it as signal reconstruction at the digital level. Your DAC receives a pristine, phase-accurate feed that unlocks its full potential.
• 👍 Full-format PCM and DSD support ▶️ The U26 handles PCM up to 32-bit/1.536MHz and DSD up to DSD2048. Whether you’re listening to standard 44.1kHz CD rips or ultra-high-res masters, it passes bit-perfect data to your DAC with clocking stability that keeps music grounded and lifelike.
